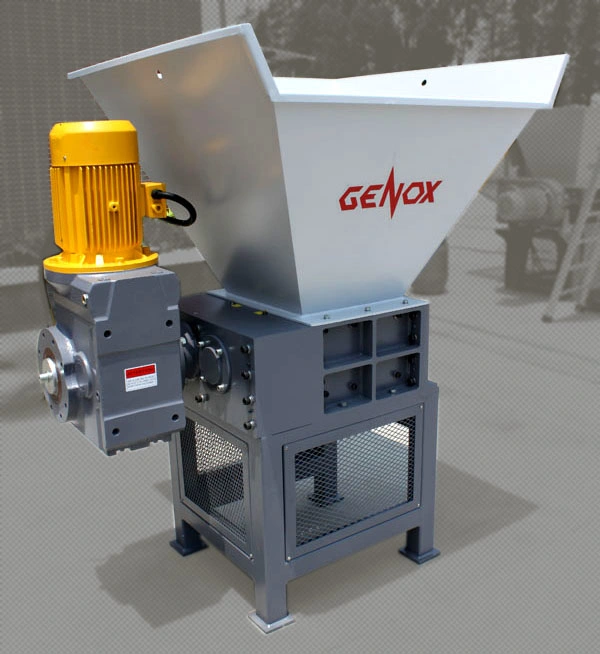

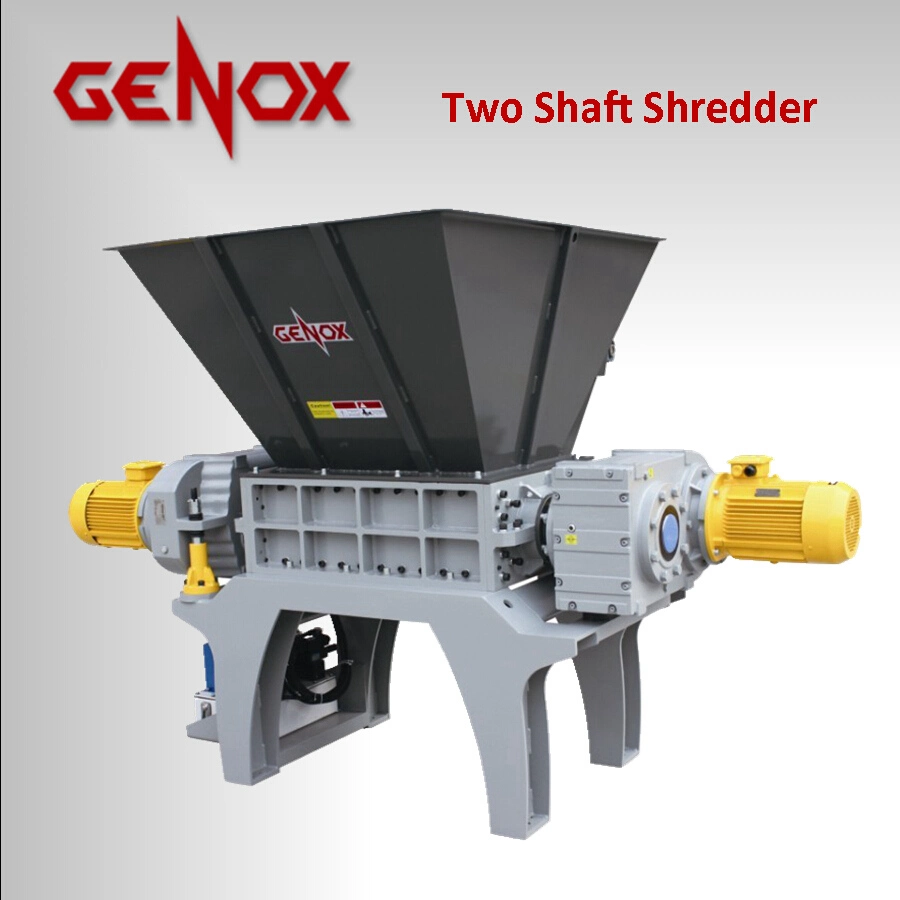

GENOX TWO SHAFT SHREDDER
M Series Two Shaft Shredders operate at low speed with high torque to minimized noise
and power consumption, whilst achieving high throughput rates.
This range of machines are particularly well suited to the size reduction of bulky or
voluminous materials which can include contamination such as metals or stones.
Manufactured from heat treated 42CrMo high grade alloy, the blades present excellent
wear and shock resistant properties.
Specifications
| model | M600 | M800 |
| Dimension L XW X H(mm) | 2560X1060X1850 | 2820X1060X1850 |
| Chamber size L X W(mm) | 600 X 480 | 800 X 480 |
| Discharge heath (mm) | 650 | 650 |
| Rotation diameter(mm) | Φ284 | Φ284 |
| Rotation speed(rpm) | 15 | 14 |
| Number of blades(pcs) | 30 | 40 |
| Blades thickness(mm) | 20 | 20 |
| Drive power(Kw) | 5.5+5.5 | 7.5+7.5 |
| Hopper volume(L) | 650 | 750 |
| Weight(Kg) | Approx 2000 | Approx 2200 |
With maintenance and operation taken into account during the design stage, the removal
and refitting of the blades is straight forward task. The machines are equipped with
mechanical and electrical overload protection systems, and can therefore be applied in
the processing of challenging materials such as WEEE (televisions, computers etc.), white
goods (washing machines & refrigerators), tires, drums, pallets, pipes to name but a few.
Certification
We awarded 50 utility model patents and 3 invention patents.
FAQ
1.Question:Will we provide pre-sale services ?
Answer:Genox consists of experienced specialists, we will offer a suitable solution according
client's requirement in time.
2.Question:Is our after-sales service excellent ?
Answer:Genox's skilled technicians are available to assist with onsite installation,
commissioning & training on request. This will enable customers to optimize the performance of
their new plant. Customers will be briefed on all aspects relating to operation and maintenance
by a Genox technician. Dimensional drawings together with service requirements will be provided
prior to delivery of the equipment. This will allow the customer to prepare the site and allow
them to commence production in a timely fashion.
Genox holds a adequately inventory of spare parts and their efficient service personnel will
ensure that any required part will be dispatched without delay. Delivery of the spare parts
may be by air, sea or courier depending on the urgency of the situation. Customers are
encouraged to hold their own critical spare parts such as granulator blades and screens to
ensure optimal machine condition and performance.
3.Question:Will we provide technical support ?
Answer:Genox provides enough hardware resource especially for large-scale production lines,
clients can carry out installation, commissioning and acceptance before delivery.
