PVC Sheet board Extrusion Line, Extruding Machine, Plastic Machinery
This line is specially used for producing PP/PE/PS/ABS/PVC single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
T -type die head: Suitable compression ratio to ensure uniform flow stability.
Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

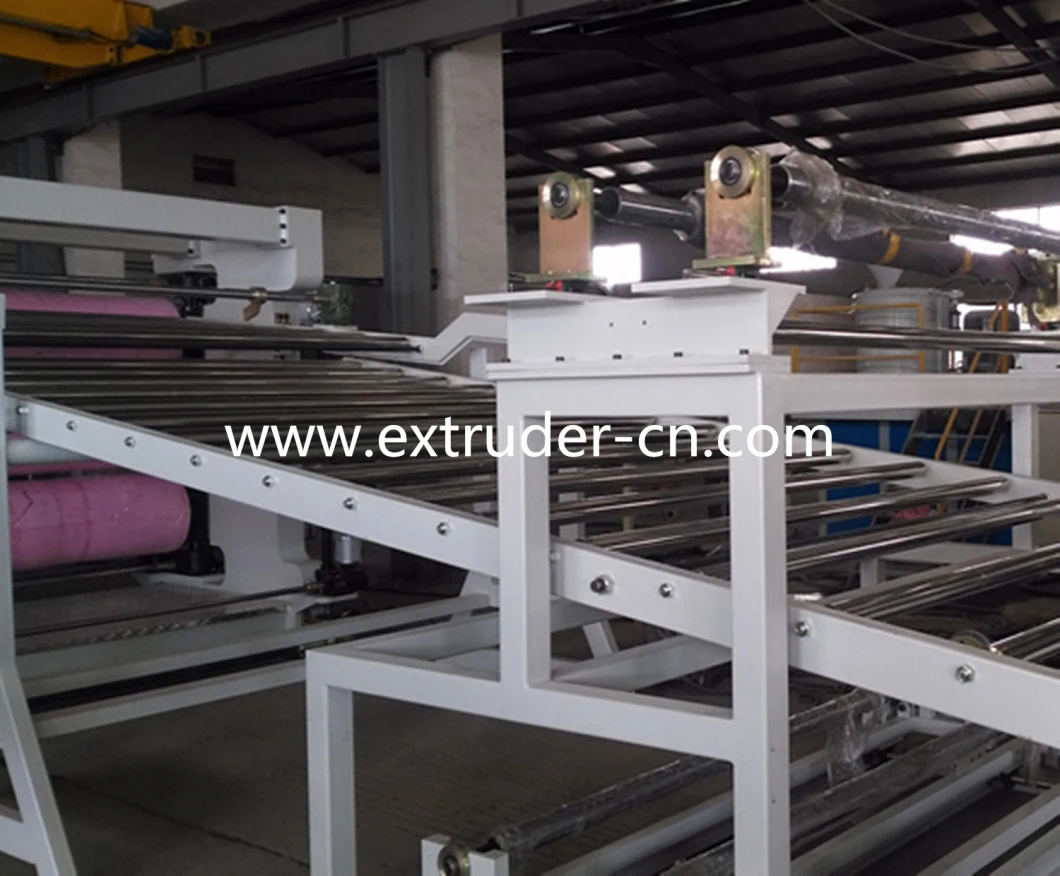

Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
This line is specially used for producing PP/PE/PS/ABS/PVC single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:
1. Usual sheet width: 700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
2. Usual sheet thickness: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.
T -type die head: Suitable compression ratio to ensure uniform flow stability.
Three-roller calendar: According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.
Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller
Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.
Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
Model | LMSB65/132 | LMSB80/156 | LMSB92/188 |
Max product width | 1000mm | 1500mm | 2000mm |
Products thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm |
Extruder model | SJ-65/132 | SJ80/156 | SJ-92/188 |
Rollers diameter | 350mm | 400mm | 450mm |
Rollers temperature control | Oil/water | Oil/water | Oil/water |
Main motor power | 37kw | 55kw,75kw | 75kw, 110kw |
Capacity | 250kg/h | 360kg/h | 550kg/h |
Total line Length | 22m | 28m | 35m |
