Plastic Floor Tile PVC Floor Spc Vinyl Floor Extrusion Line

The SJSZ92/188 Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line include 1 extruder SJSZ92/188(include the 1 set of Electric Cabinets),the motor is 110KW imported Germany SIEMENS,the max output is about 700kg/h1)Surface can be laminated with different design decoration film2

Featured Products

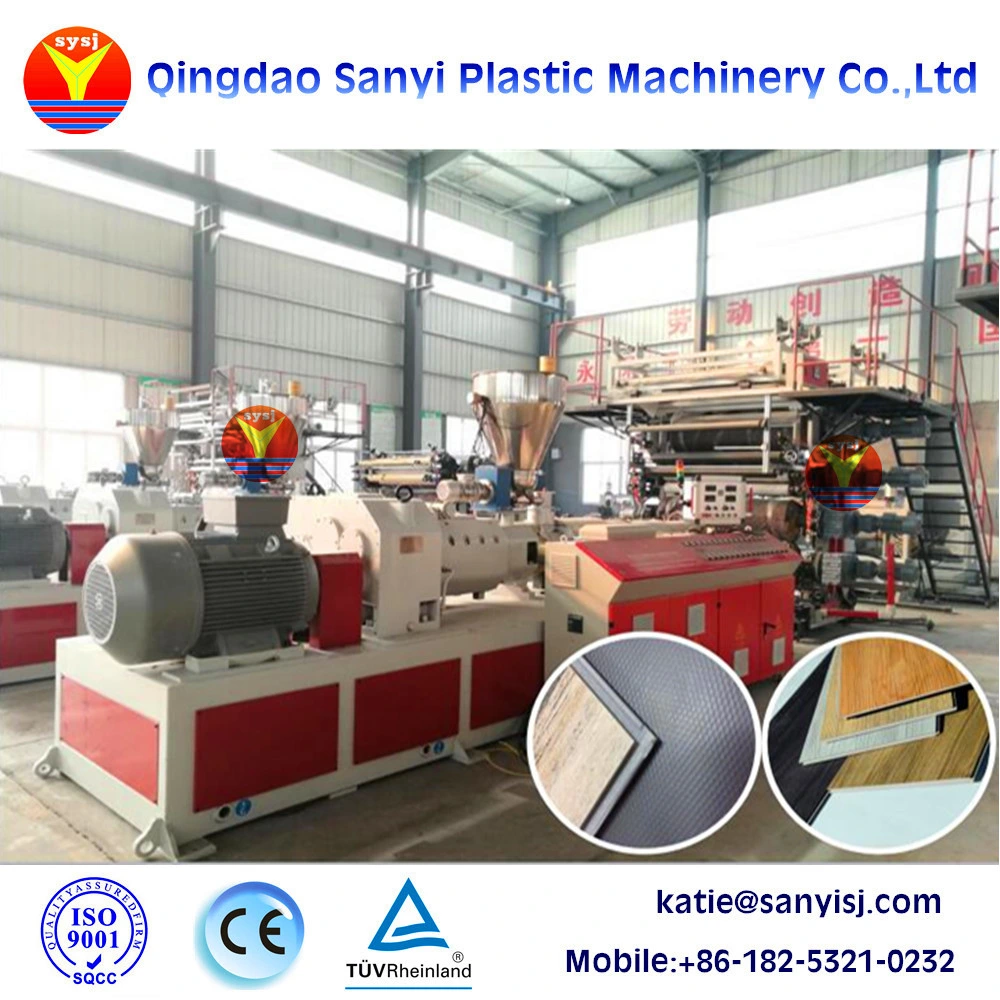

The SJSZ92/188 Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line
 include 1 extruder SJSZ92/188(include the 1 set of Electric Cabinets),the motor is 110KW imported Germany SIEMENS,the max output is about 700kg/h

1)Surface can be laminated with different design decoration film

2)Laminate wear-resisting layer at top surface

3)Emboss with different design

4)Sound insulation cushion layer can be laminaed at bottom side

We are the only factory uses imported German SIEMENS electrics for Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line
Finished Product Size(970mm)1220mm with thickness:2mm-8mm
Main MaterialPVC/CaCO3/Processing Additives
ExtruderSJSZ92/188
Production Capacity700kg/h
Air Pressure0.6-0.8Mpa/min
Power Supply3P/380V/50HZ or Customized
InverterGerman SIEMENS(G120 series)
Main motor/AC Contactor/Thermal overload Relay/Breaker etcGerman SIEMENS
PLC SystemGerman SIEMENS(Top Series)
Termparture ControllerJapan OMRON
ScrewSpecially design for SPC Flooring
We are the unique stragetic partner of SIEMENS in China for Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line

Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line

Production Flow


Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line include

1)SJSZ92/188 Conical twin-screw extruder

2)T type Mould

3)5-roller Calender System with online lamination device with the newest:"7"type

4)Cooling Bracket+Air Curtain

5)Side Trimming Device

6)Haul off device

7)Precision shearing machine

8)Stacker
Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line

Auxiliary Machines for your choice

We provide the Auxiliary Machines of  Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line

No.Name of MachineTypeQuantity
1CrusherSWP3801 set
2GrinderSMF6601 set
3High Speed Heat/Cooling Mixing MachineSRL-Z500/10002 sets
4Automatic Robot1 set

Product Uses

SPC floor is the new environmental Super Floor,adopts the natural stone powder and PVC resin powder as the base material, and is coated with polymer wear-resistant layer, and is processed by Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line.The whole process does not use glue, paint and other substances containing formaldehyde and toluene. The materials used are non-toxic formaldehyde free, waterproof sterilization, convenient installation, realistic lines, super wear-resistant waterproof, flame retardant and heat resistant, it is representative of twenty-first Century new high-tech ground material. Because of the excellent stability and durability of the SPC floor, this kind of floor has been popular in developed countries in Europe and America.

Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line

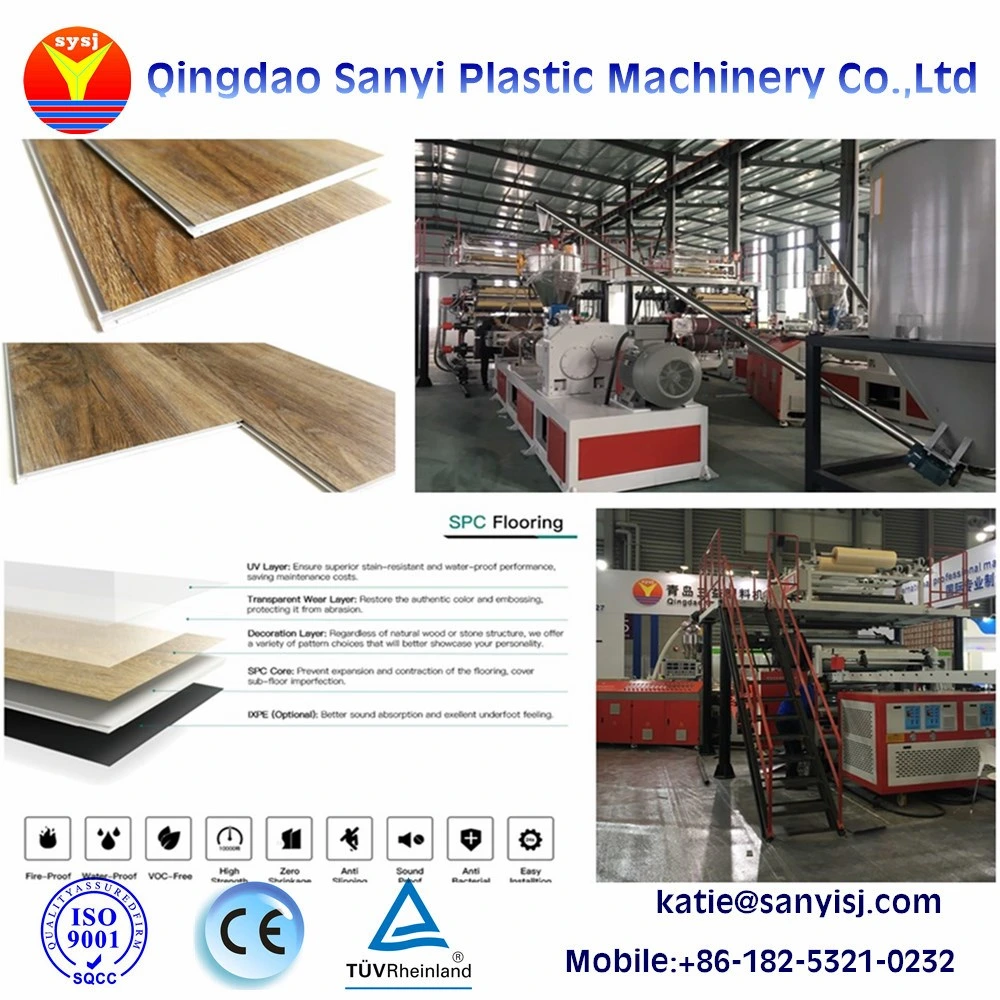

Our Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line can produce

SPC Flooring Plank including:UV Coating Layer,Wear Layer,Decorative Layer,SPC Core Layer,XIPE/CORE layer(optional)

After launched the SPC Flooring Plastic Machinery ,we release the Newest SJSZ92/80 (Stone Plastic Composite) SPC co-extrusion Flooring Plastic Machinery and we called it ABA-SPC

ABA structure SPC Core Flooring Plank including: UV Coating Layer,Wear Layer,Decorative Layer,SPC Top Layer,SPC Middle Layer,SPC Bottom Layer with higher stability,flexible formula etc

The PVC/SPC Flooring produced by Plastic PVC Rigid Vinyl Plank RVP SPC Flooring Machine Extruder is widely used in many different lines for various application including:Department Store,Hotel,Restaurant,Bank,Office,Residence etc
Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line

Certifications

Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line

Why you choose SANYI


Qingdao Sanyi Plastic Machinery Co., Ltd.

located in Qingdao, City,Shandong Province,China;We specialize in manufacturing of PVC Plank Plastic Machinery include:Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line, Co Extrusion WPC Foaming Core Flooring Making Machine,PVC WPC Foam Board Making Machine with at least 12 years in China. We have been keeping researching and developing our production line for  many years and have improved to the latest generation. Our Plastic Vinyl Flooring Tile/Panel/Plank/Board/Sheet Extrusion Machine RVP SPC Flooring Machinery shows superior performance and capacity.

SANYI is the unique Chinese factory provides the LIFE-LONG service system as we take much attention the feedbacks from our customers

Pre-sale service:

To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc.
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

After-sale service:
To install products and test products freely for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers' requirements
To provide technical training for clients' employees.
To be responsible for maintenance service, door-to-door service under the necessary circumstance.

Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients' employees.

SANYI is the 1st company running the Plastic Flooring Tile PVC Flooring SPC Vinyl Flooring Extrusion Production Line at the exhibition of 2018 CHINAFLOOR/DOMODEX

Plastic Flooring Tile PVC Flooring Spc Vinyl Flooring Extrusion Production Line
